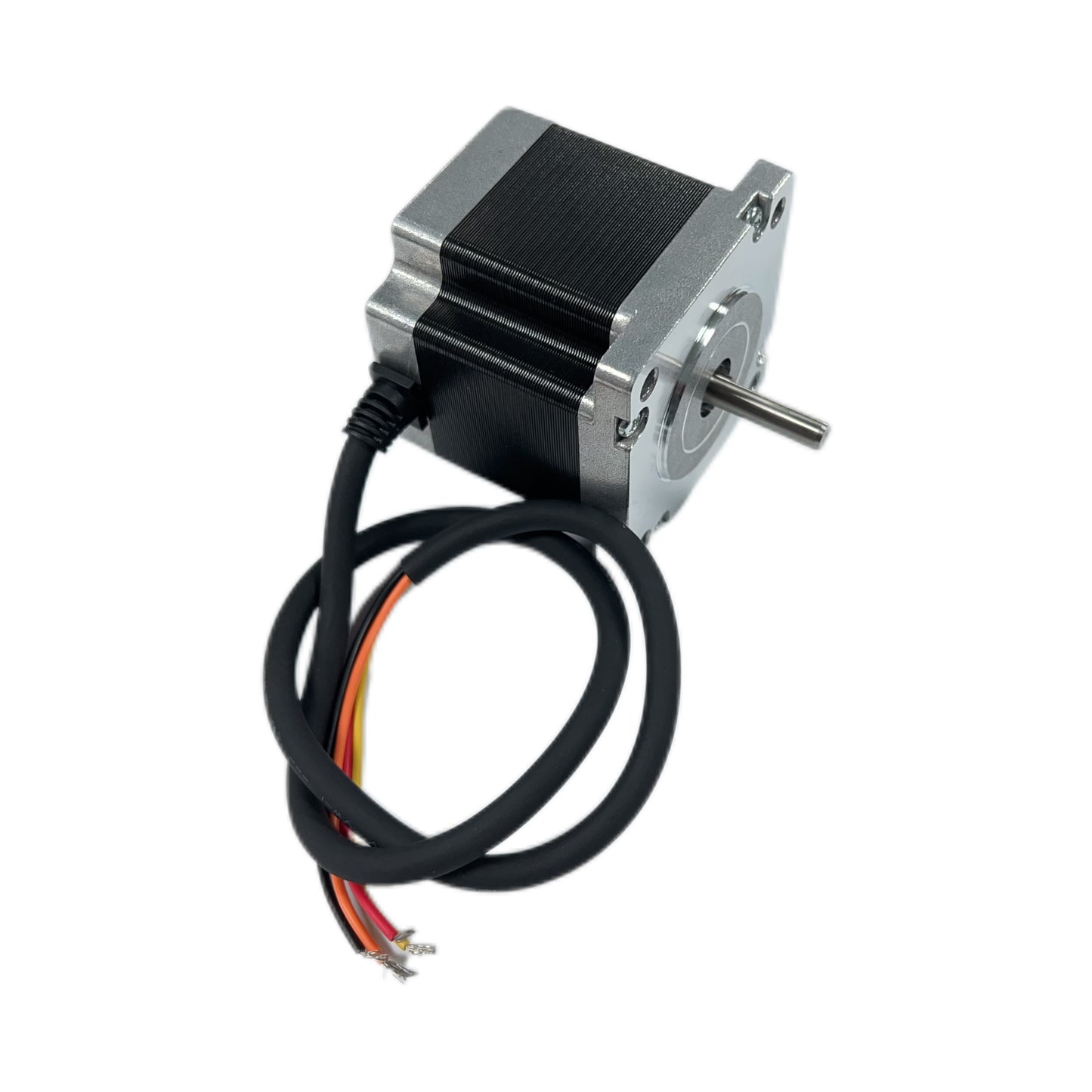

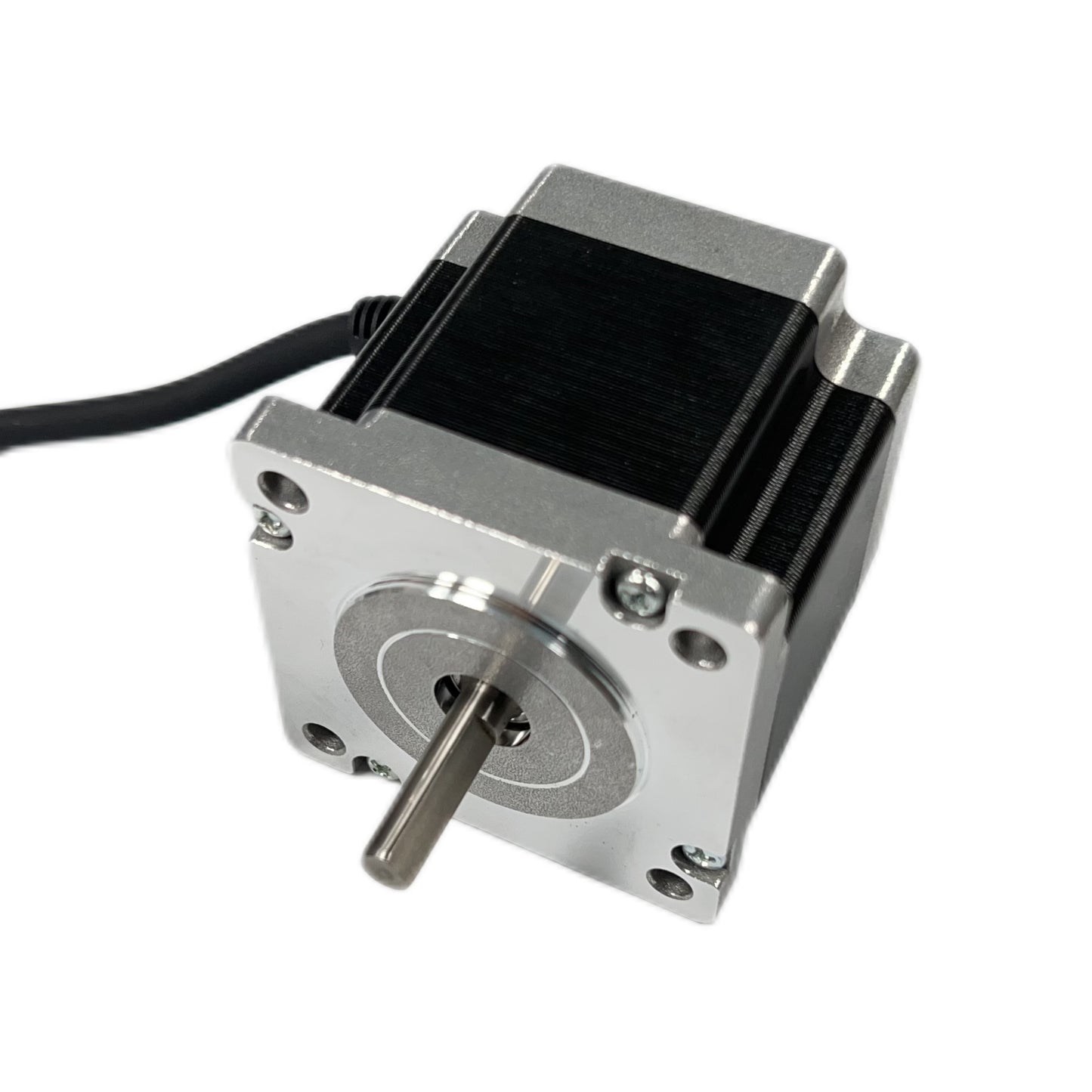

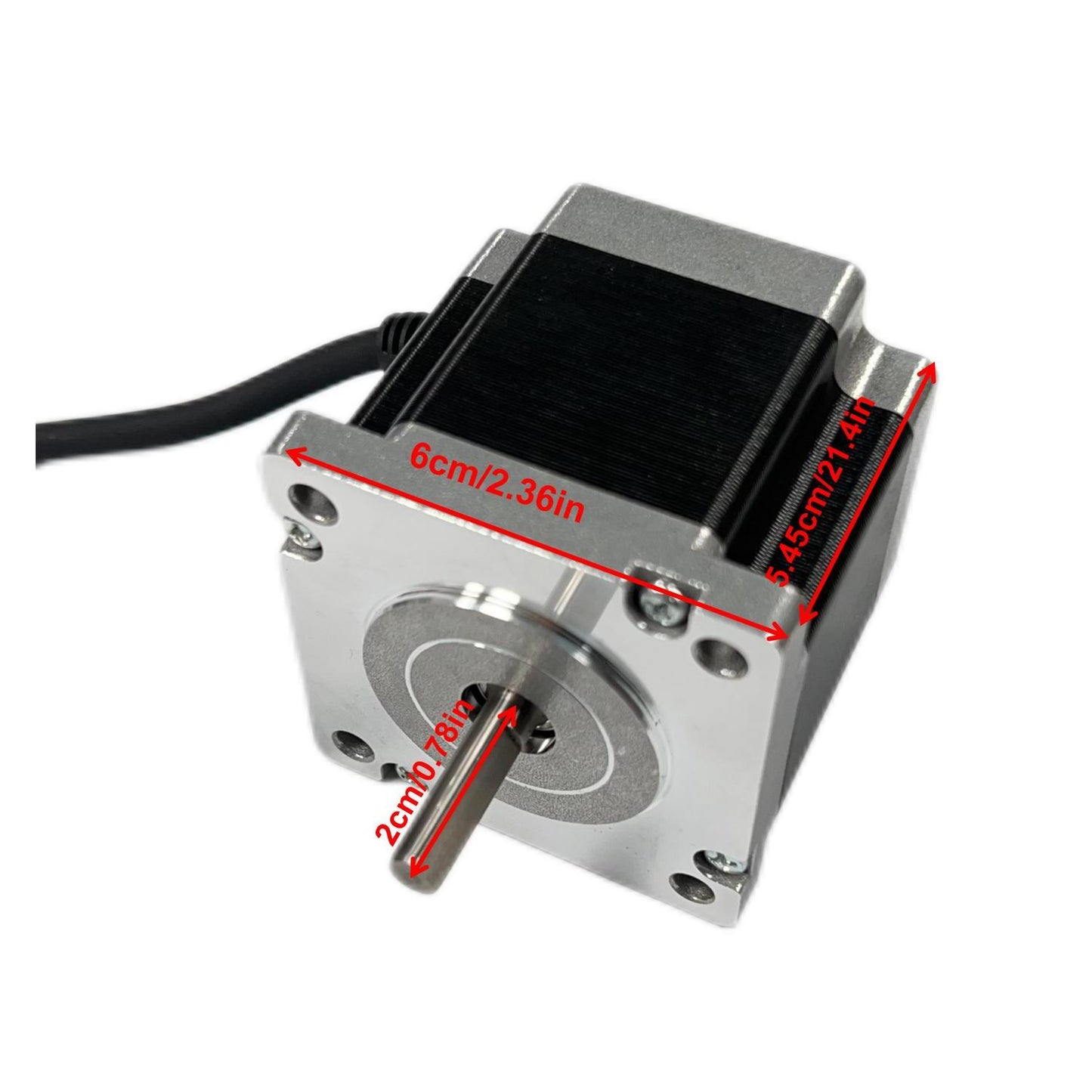

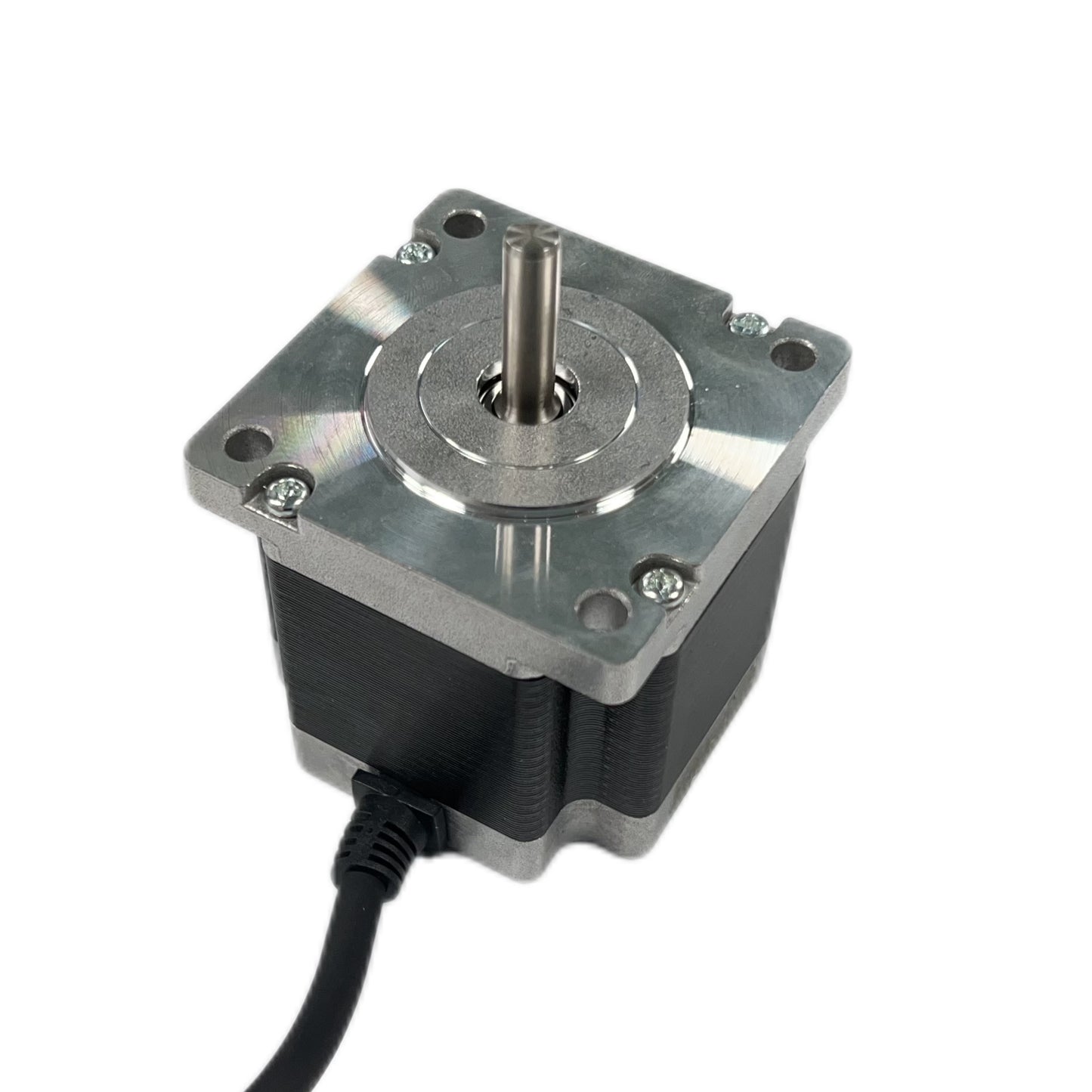

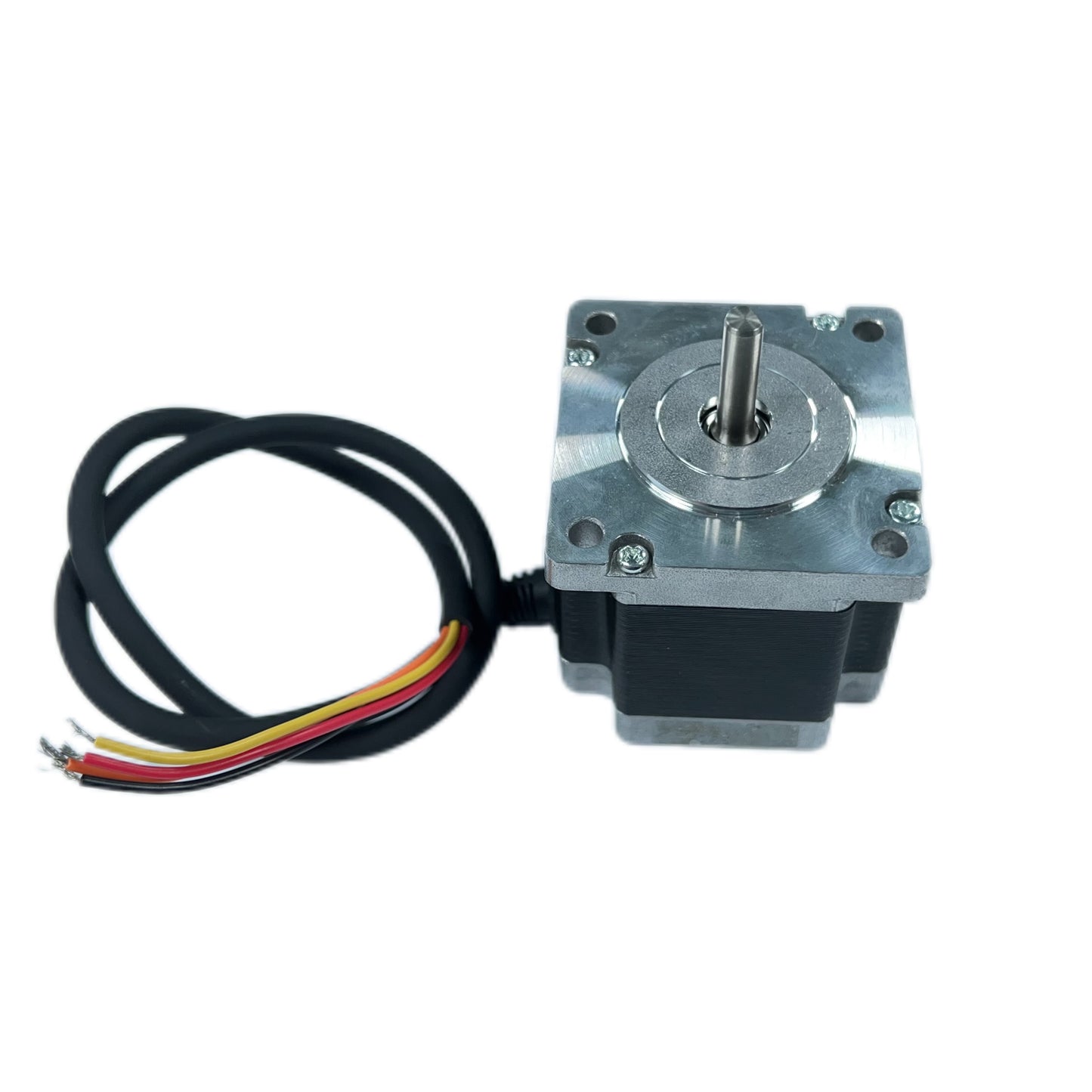

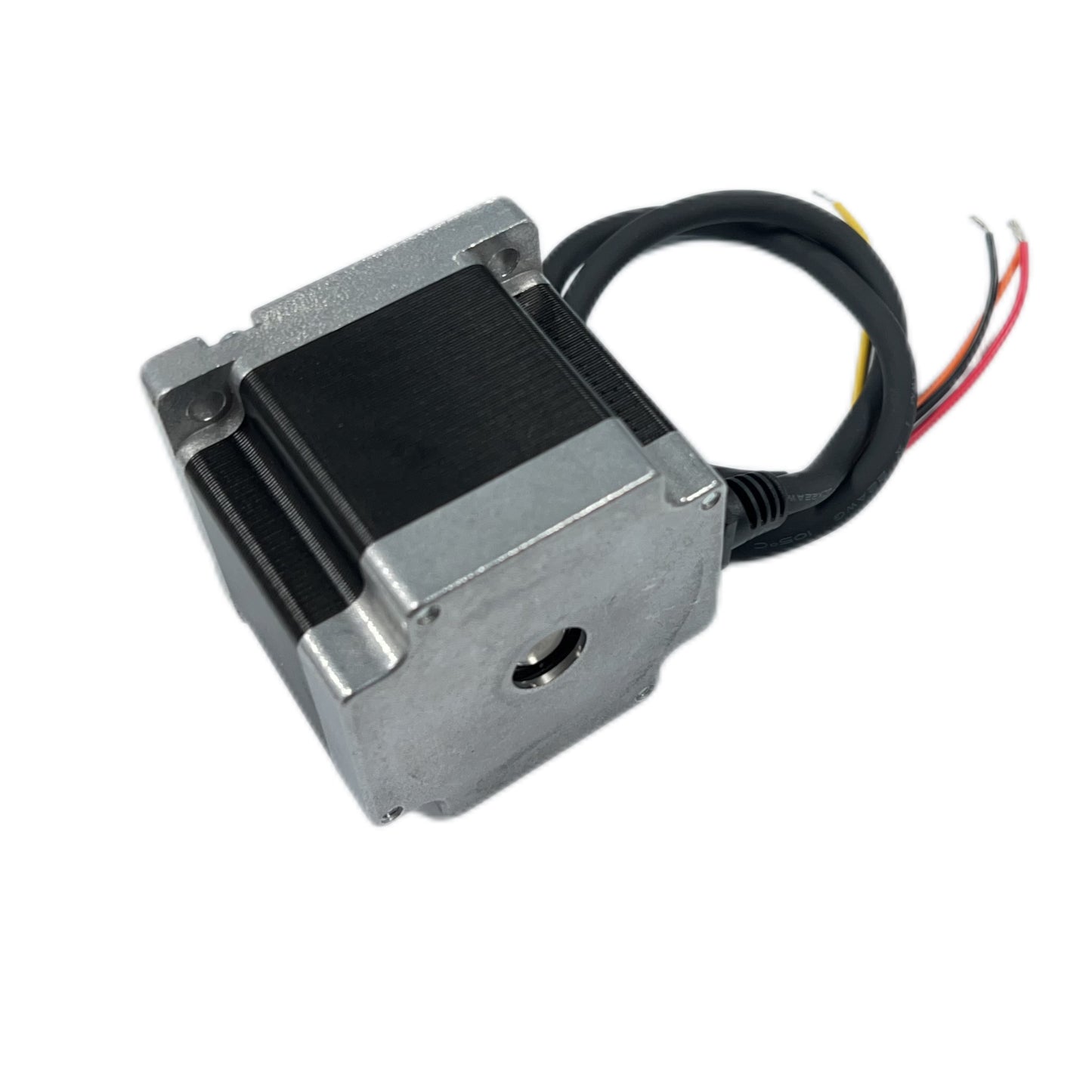

Factory Direct Sale HEMM-24D2405-02 NEMA 24 series Hybrid stepper motor with Discount

High-Performance 2-Phase Stepper Motor

This high-precision 2-phase stepper motor is designed for reliability and efficiency in demanding applications. With a 1.8° step angle (±5%), it delivers accurate positioning and smooth operation.

Key Features:

• Rated Voltage & Current: 3.6V, 2.8A
• Resistance & Inductance: 1.3Ω (±10%) at 25°C, 4.0mH (±20%) at 1kHz, 1Vrms
• Holding Torque: 1.6 N.m (236.7 oz.in) for strong performance
• High Dielectric Strength: 500V A.C for 1 minute
• Superior Insulation: Class B with ≥100MΩ insulation resistance
• Durable Construction: Supports up to 15N thrust load and 75N radial load
• Operational Reliability: Works in -20°C to +50°C with 15%-95% humidity
• Long Lifespan: 5,000 hours of continuous operation

With a compact yet robust design, this stepper motor is ideal for automation, robotics, and CNC machinery, ensuring high torque, precision, and longevity.
