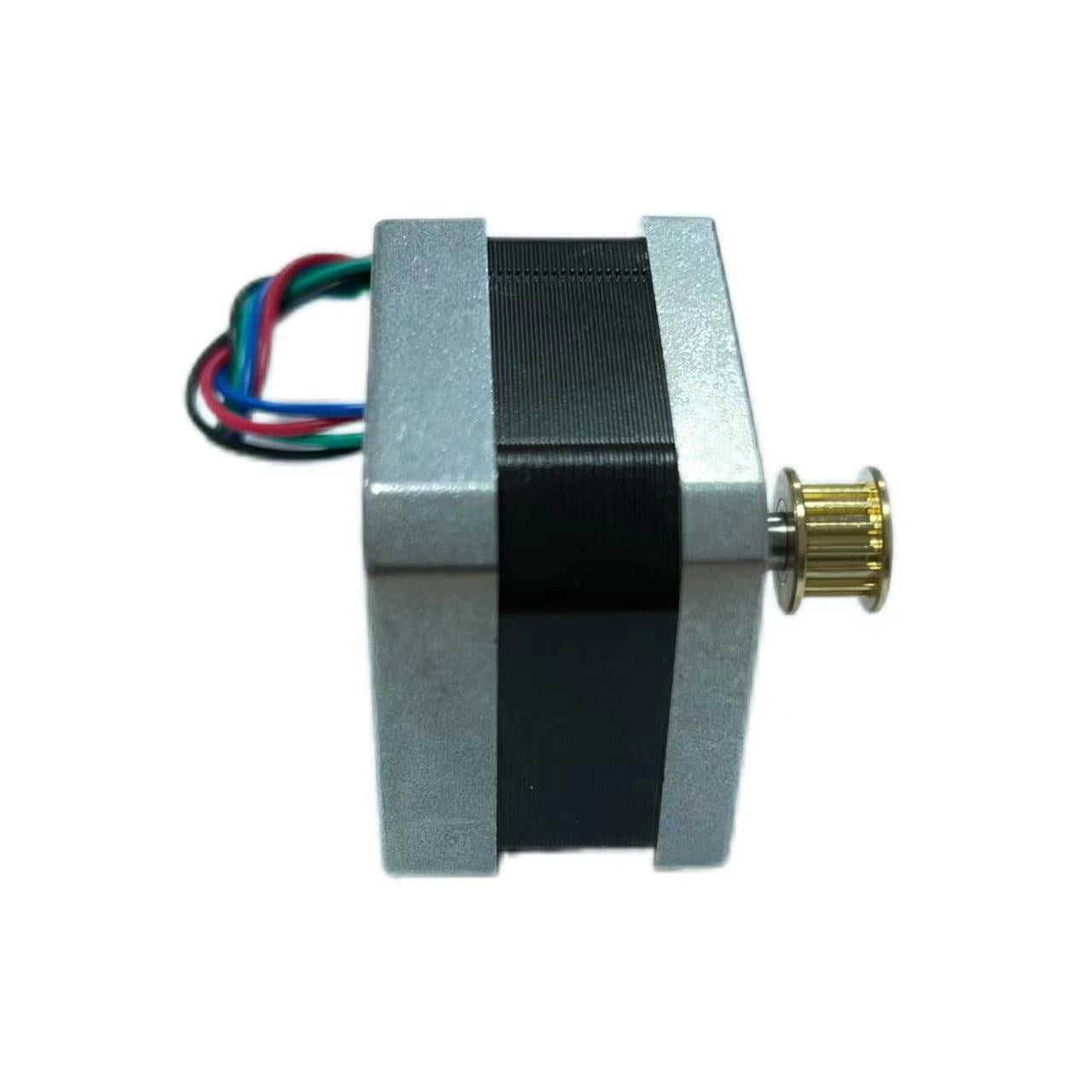

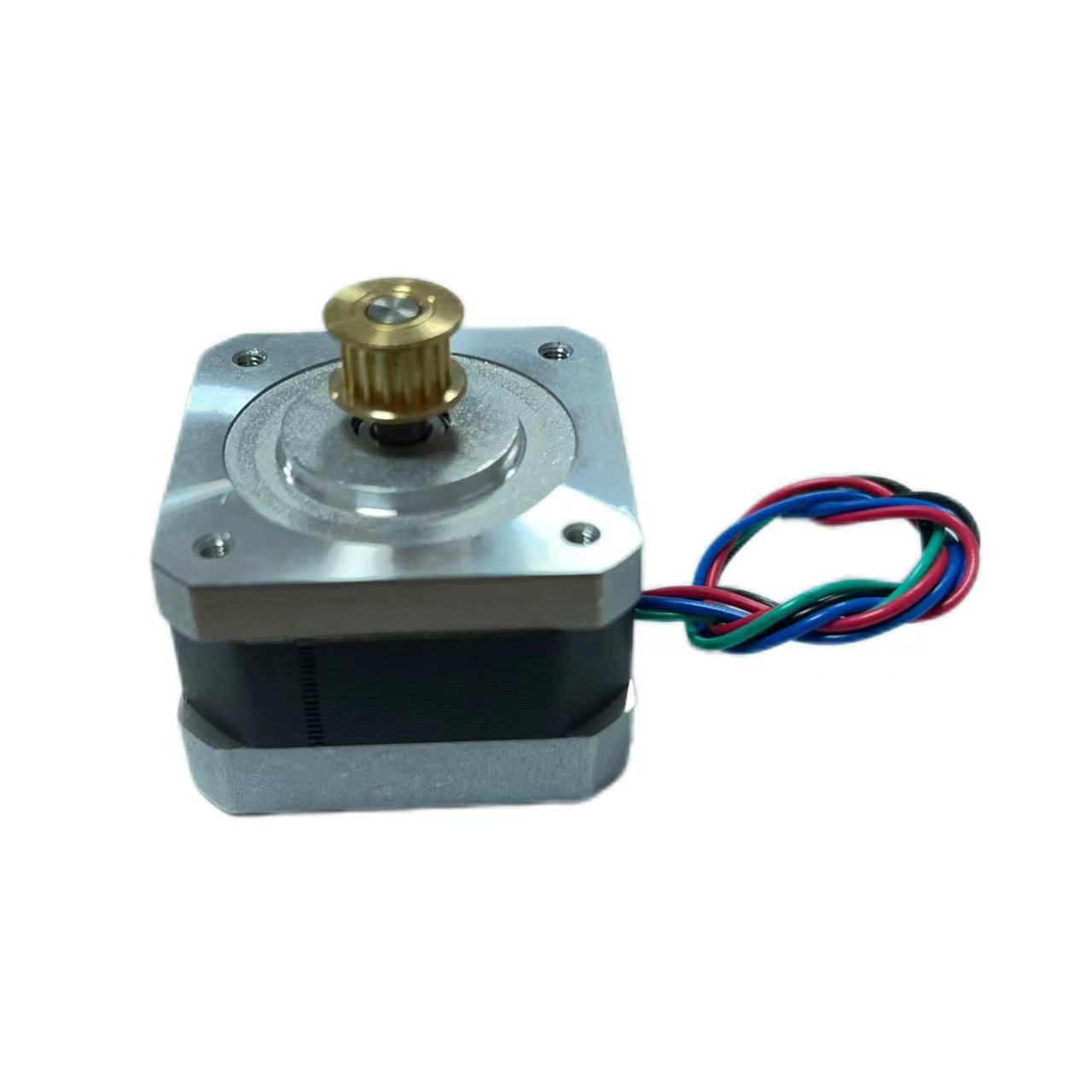

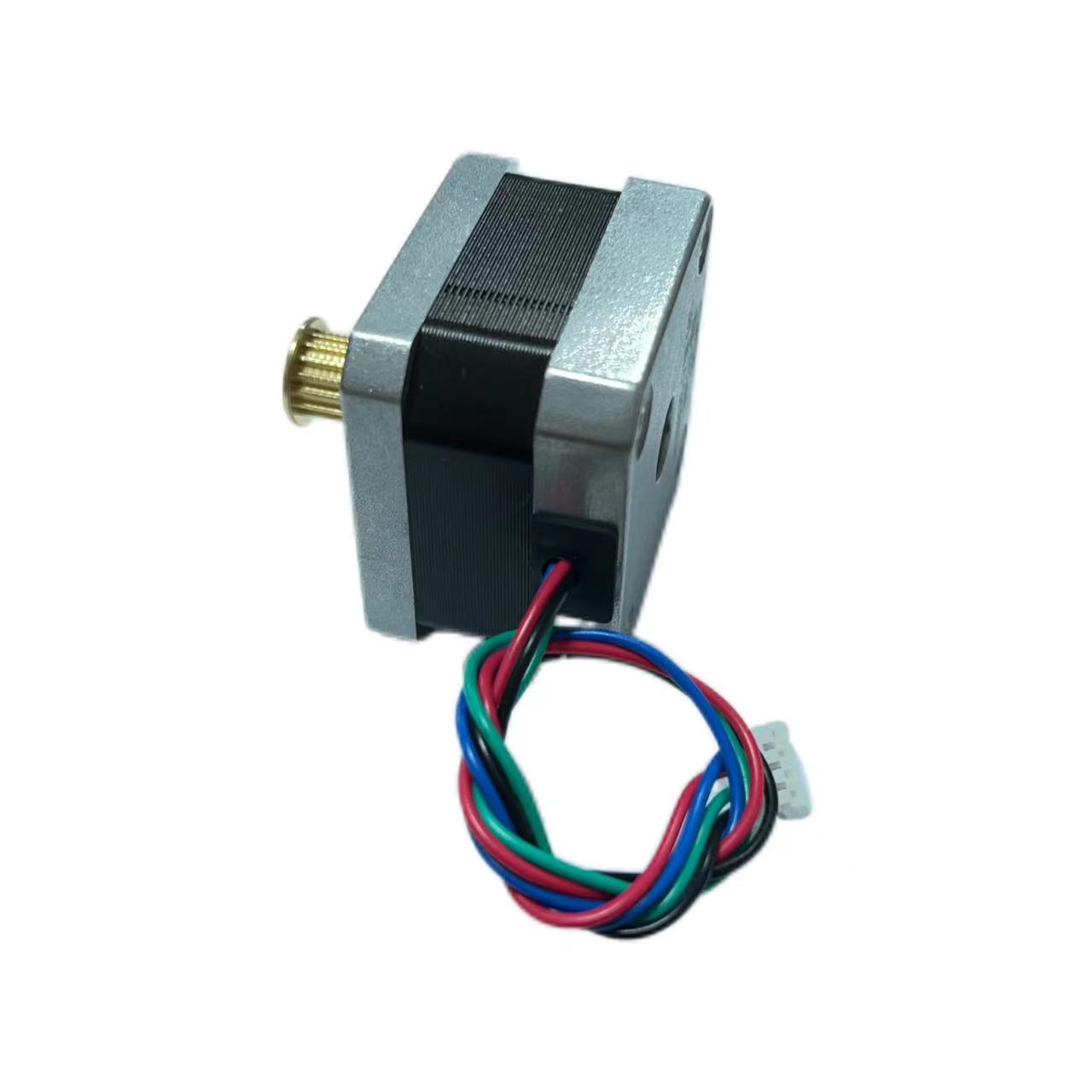

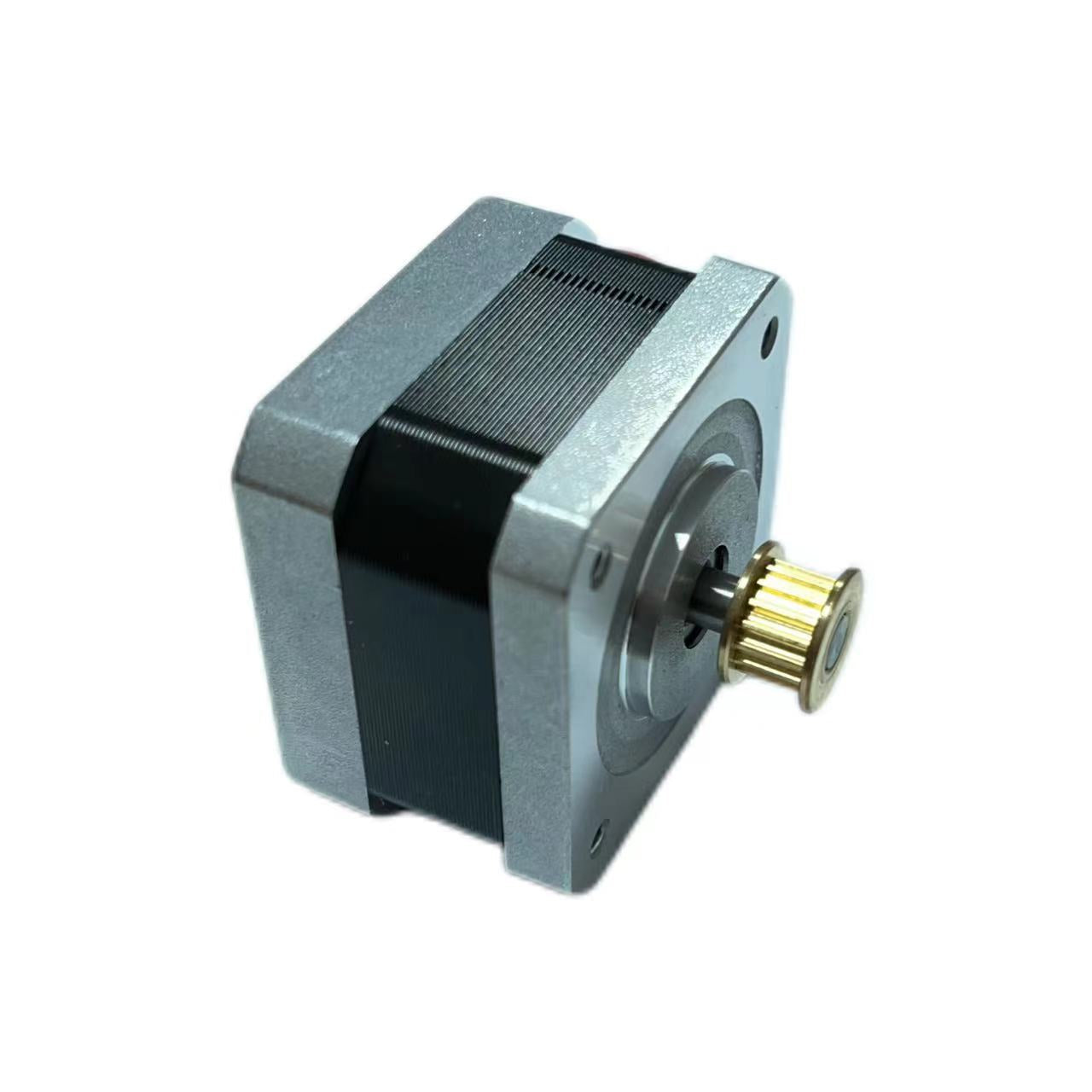

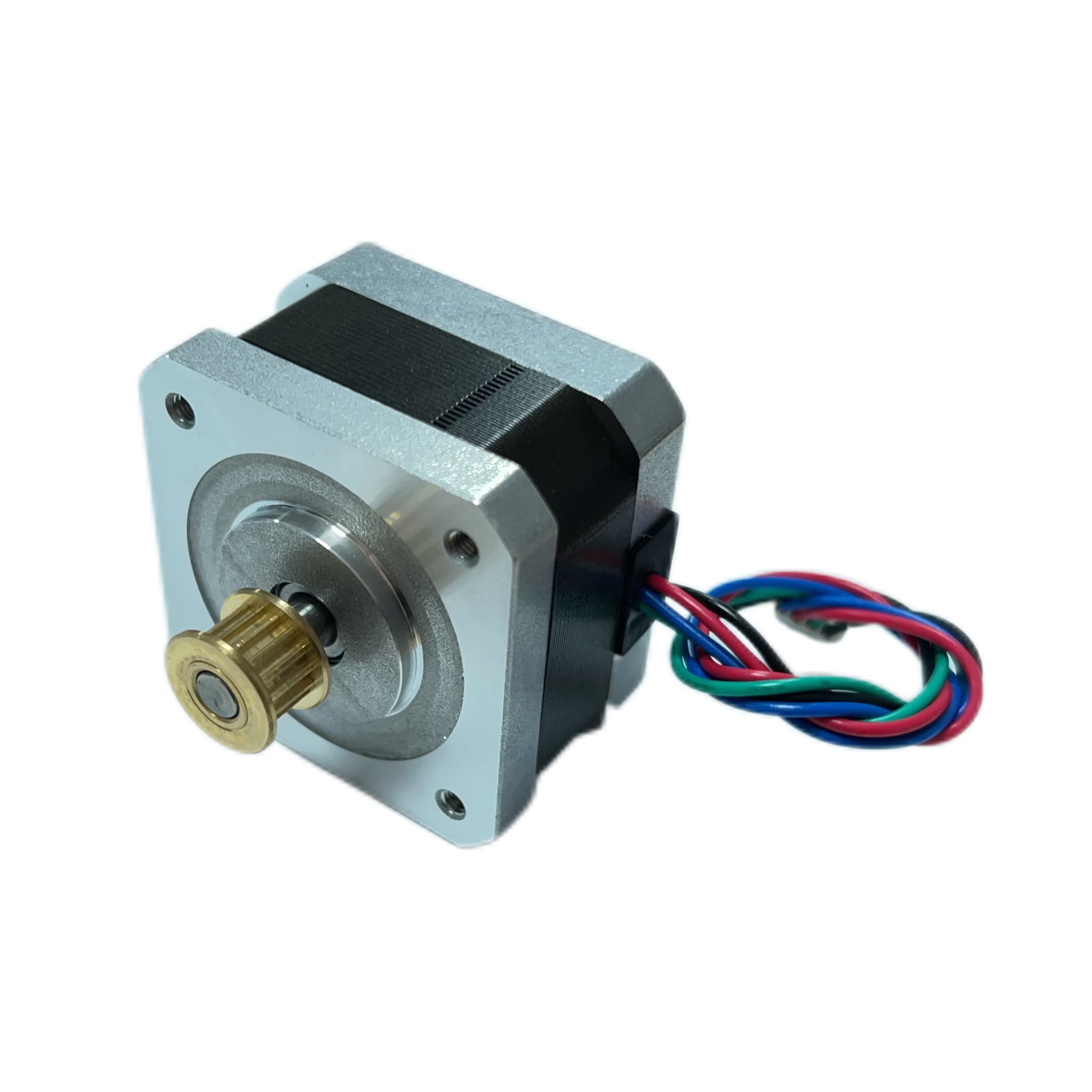

Factory Direct Sale NEMA 17 17C1409 0.15Nm Hybrid Stepper Motor with Gear Pulley
Factory Direct Sale NEMA 17 17C1409 0.15Nm Hybrid Stepper Motor with Gear Pulley
No reviews
Prix habituel
$11.25 USD
Prix habituel
$22.50 USD
Prix promotionnel
$11.25 USD
Prix unitaire
/
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
17C1409 Stepper Motor - Key Specs & Features
- Precision: Step angle 0.9°±5% for accurate movement; 2-phase design for broad compatibility.
- Electricals: Rated voltage 2.64V, rated current 1.2A. Resistance 2.2Ω±10% (25°C); inductance 5.0mH±20% (1kHz, 1Vrms).
- Performance: Min. holding torque 0.15N.m (21.2oz.in). Insulation: Class B, 500V AC dielectric strength (1min), ≥100MΩ resistance.
- Load Capacity: Allowable thrust load 10N; radial load 21N (shaft end). Rotor inertia 26.6g.cm² (0.15oz.in²).
- Environment: Operates in -20°C to +50°C, 15%-90% humidity.
- Durability: 5000-hour lifespan; max. temperature rise 80K. Net weight approx. 180g (6.3oz).
