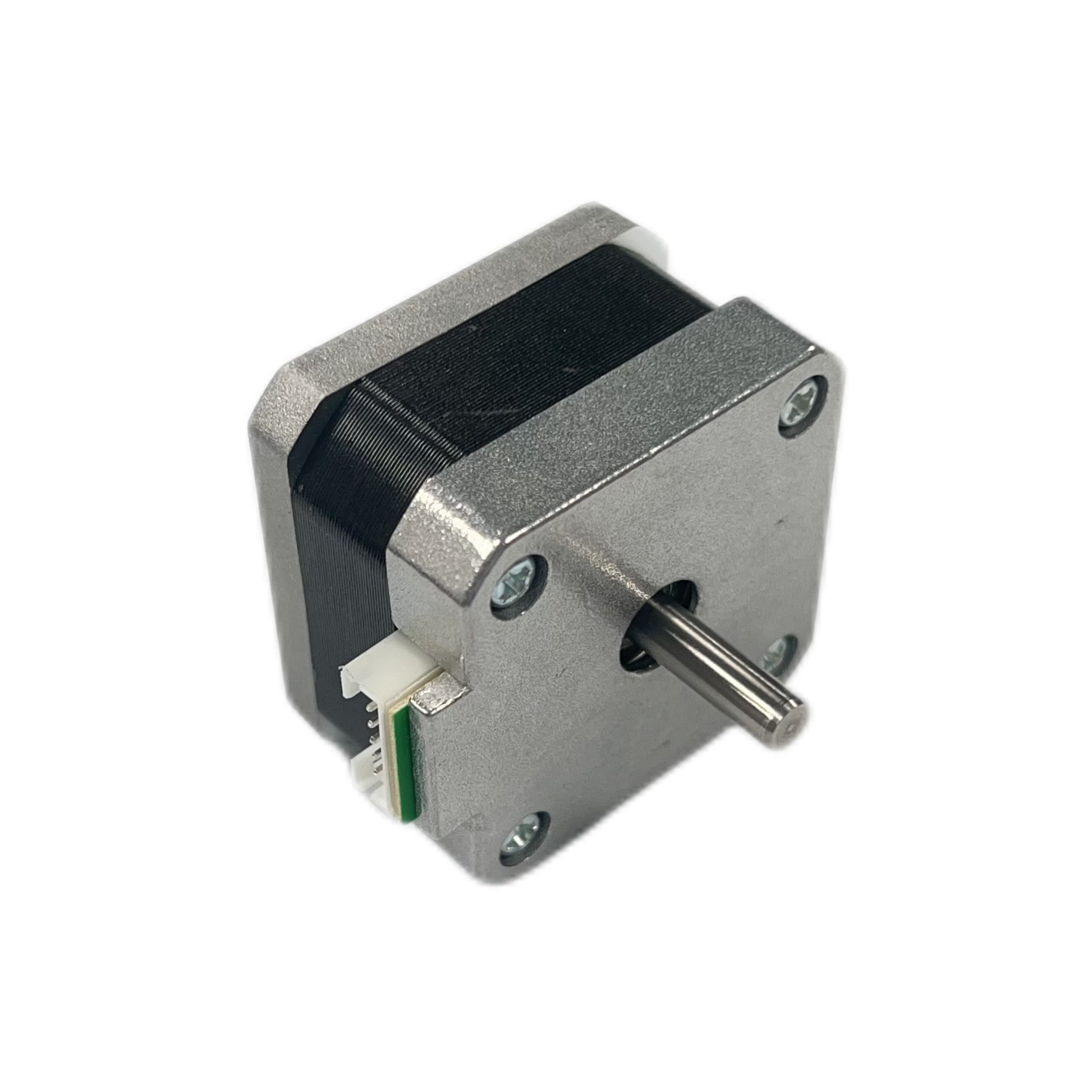

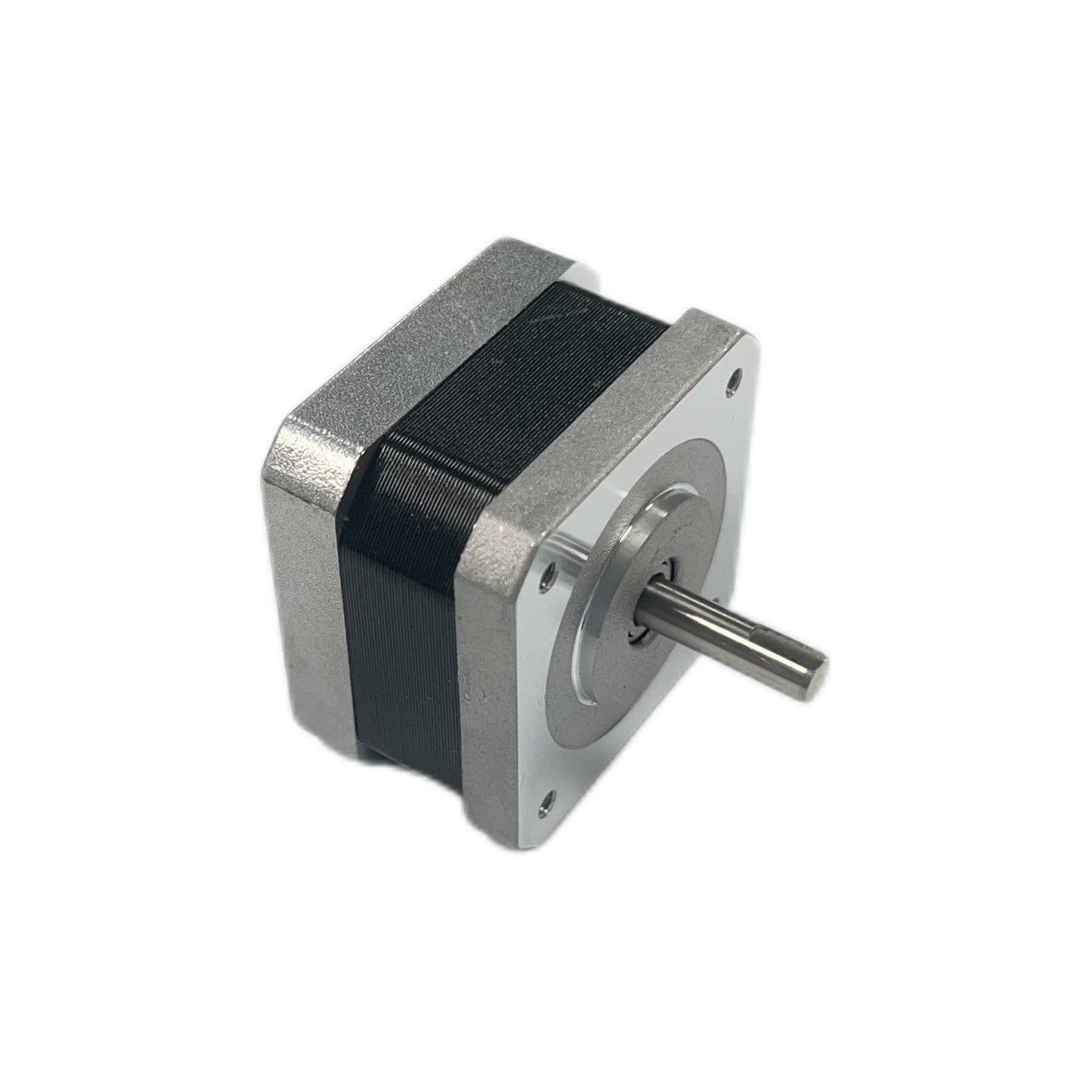

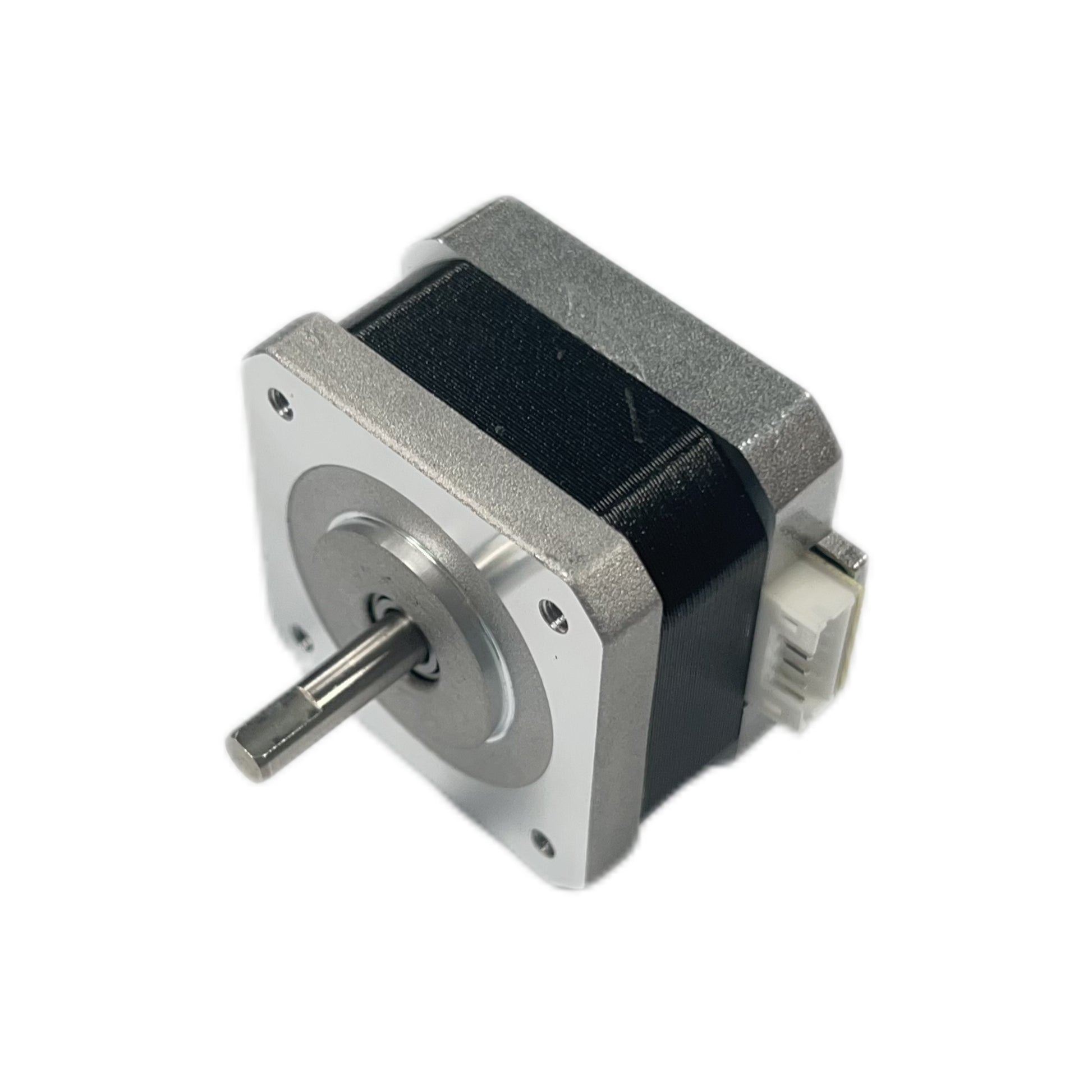

Factory Direct Sale HEMM Nema17 17C1001 0.9° Double Shaft stepping motor

Factory Direct Sale HEMM Nema17 17C1001 0.9° Double Shaft stepping motor

Regular price $7.40 USD
Regular price $15.99 USD Sale price $7.40 USD
Sale Sold out
Shipping calculated at checkout.

Introducing the HEMM 17C1001 - a premium Nema17 frame stepper motor featuring an ultra-precise 0.9° step angle and dual shaft design for maximum installation flexibility. Engineered for applications requiring superior positioning accuracy, this motor delivers exceptional 0.16N.m (22.6oz.in) holding torque while maintaining smooth operation.

Key Specifications:
 Frame Size: Standard Nema17 (42mm)
 Step Angle: 0.9° ±5% (Half the standard 1.8° motor)

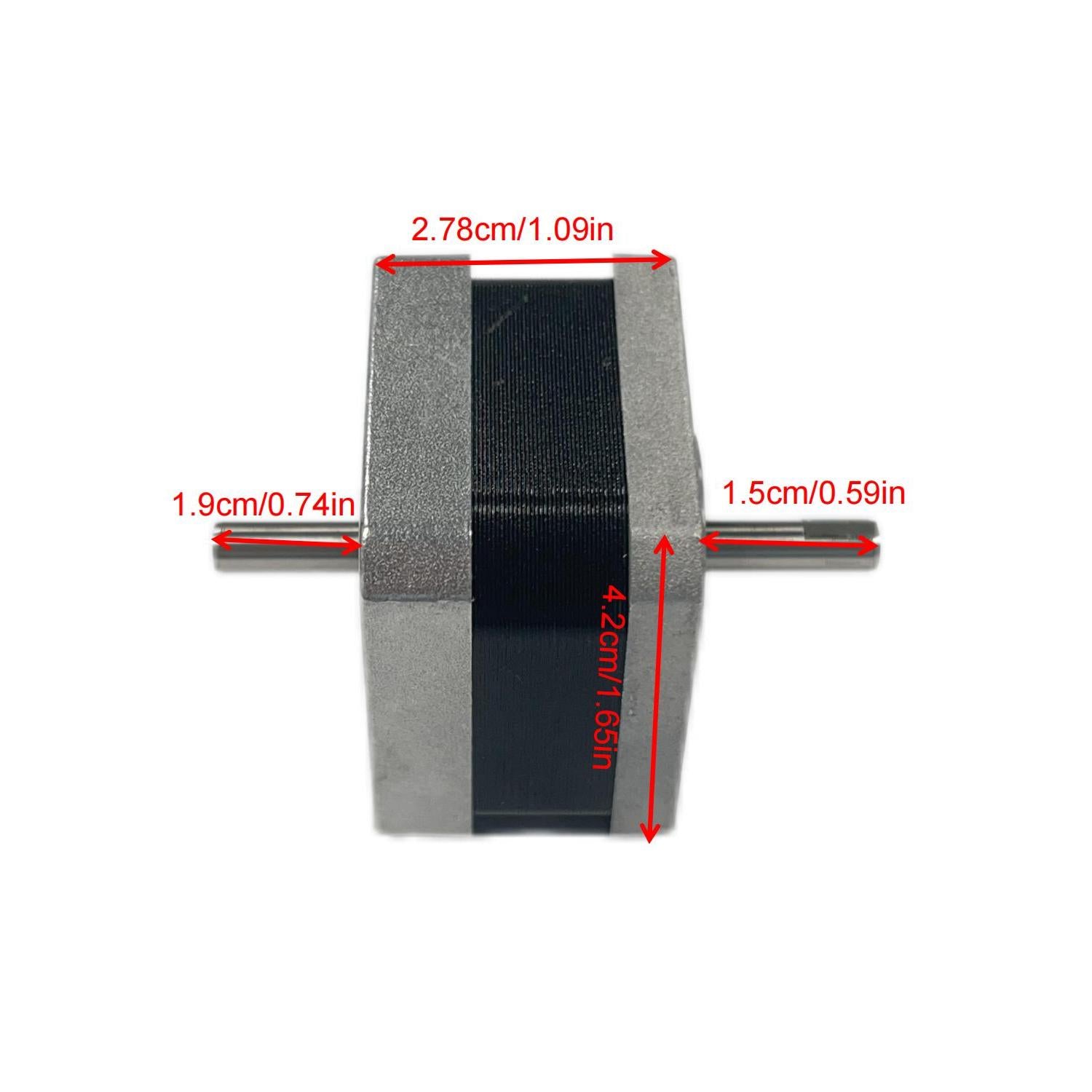

 Dual Shaft Design: Enables flexible mounting options
 Holding Torque: 0.16N.m (22.6oz.in) minimum
 Electrical: 2-phase, 2.4V rated voltage, 0.4A current
 Impedance: 6.1Ω resistance, 15.3mH inductance

Premium Features:
 Enhanced Resolution: 400 steps/revolution (vs standard 200 steps)
 Industrial Durability: Class B insulation, 500V AC dielectric strength
 Robust Construction: 280g (9.88oz) weight for stable operation
 Precision Engineering: Low vibration and noise characteristics
 Long Service Life: Rated for 5,000 hours continuous operation

Performance Advantages:
 Double Shaft Flexibility: Ideal for encoder mounting or dual-drive systems
 Wide Compatibility: Standard Nema17 mounting pattern
 Mechanical Load Capacity: 10N axial and 21N radial load support
 Environmental Tolerance: -20°C to +50°C operating range

Technical Details:

  • Rotor Inertia: 57g.cm² (0.31oz.in²)

  • Insulation Resistance: 100 MΩ minimum

  • Temperature Rise: 80K max

  • Humidity Range: 15%-90% operation

Ideal for High-Precision Applications:

  • CNC milling machines

  • Precision automation equipment

  • Laboratory instruments

  • Optical positioning systems

  • Advanced 3D printers

  • Medical imaging devices

Why Choose the 17C1001?
 Superior Positioning Accuracy: 0.9° step angle doubles resolution
 Installation Versatility: Dual shaft for flexible system integration
 Industrial-Grade Reliability: Built for continuous operation
 Factory Direct Value: High-quality components at competitive pricing

This precision stepper motor represents the perfect solution when standard 1.8° motors can't deliver the required accuracy. The combination of high torque output, ultra-fine 0.9° stepping, and dual shaft configuration makes the HEMM 17C1001 an exceptional choice for engineers designing high-performance motion control systems.

Upgrade to precision motion control today - experience the difference that 0.9° stepping and dual shaft flexibility can make in your application!
