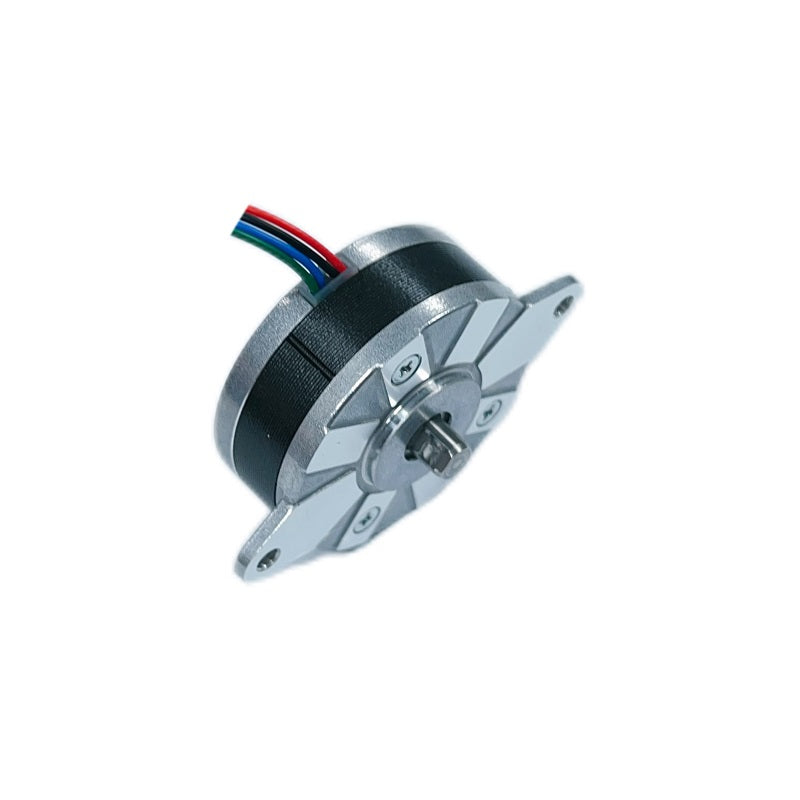

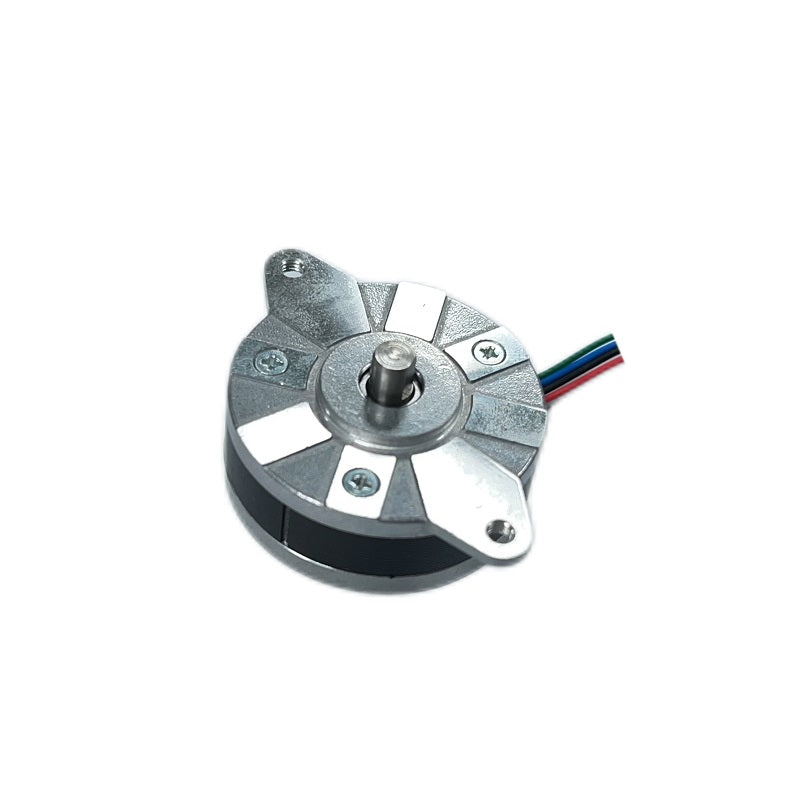

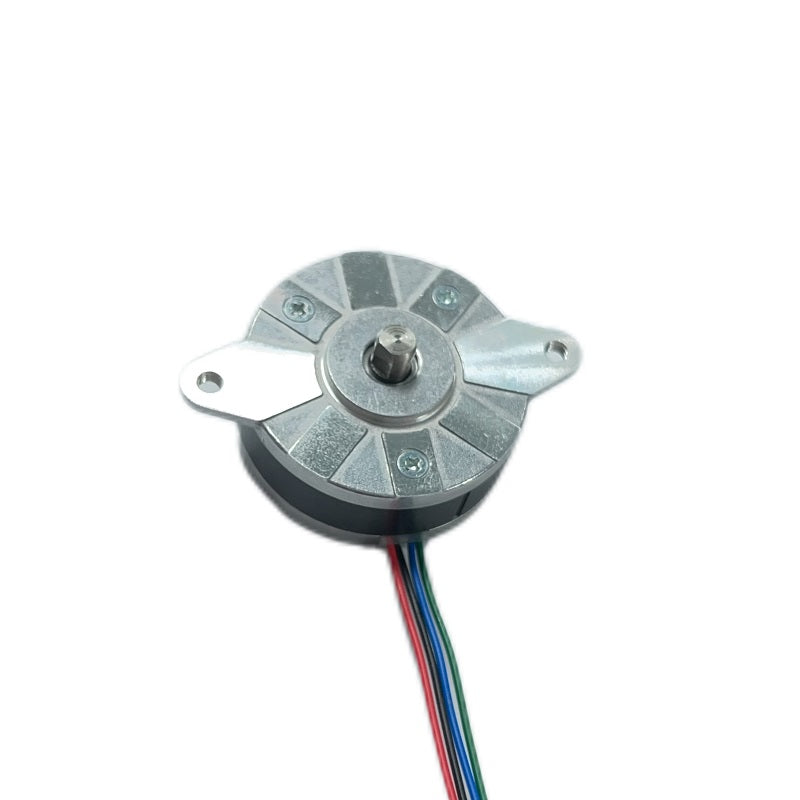

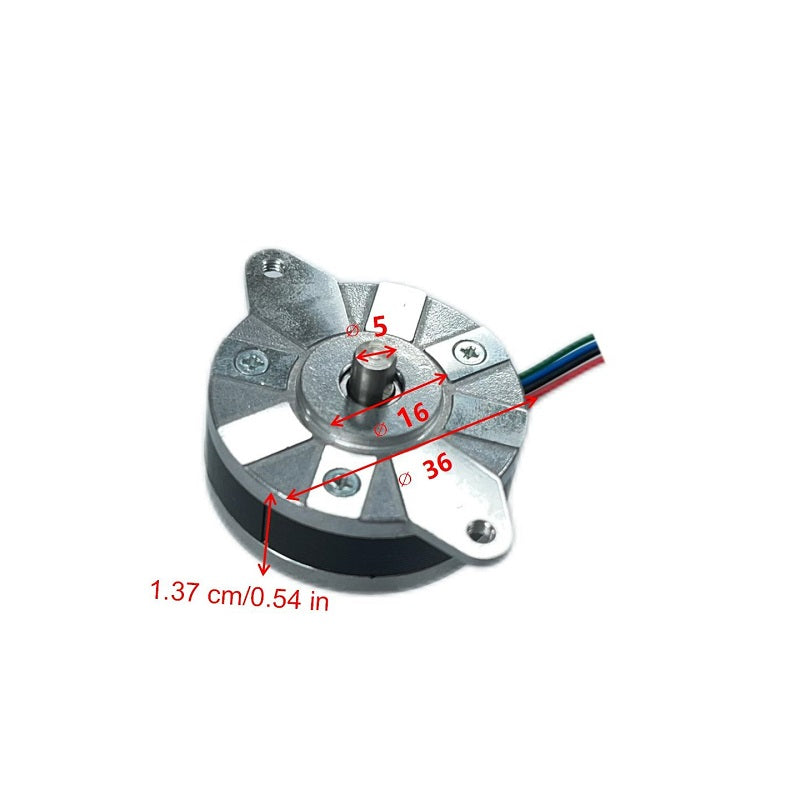

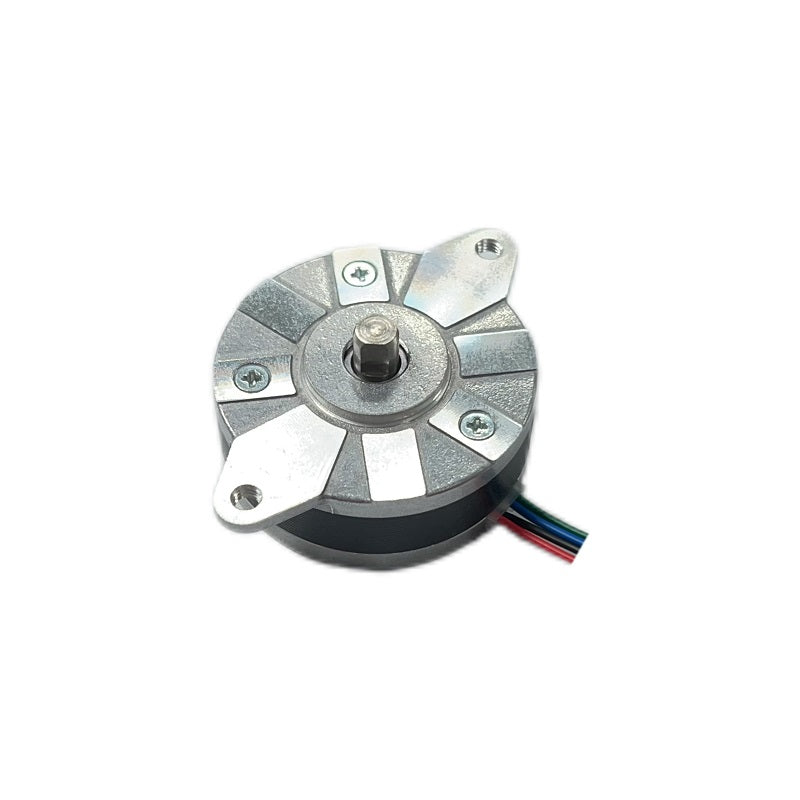

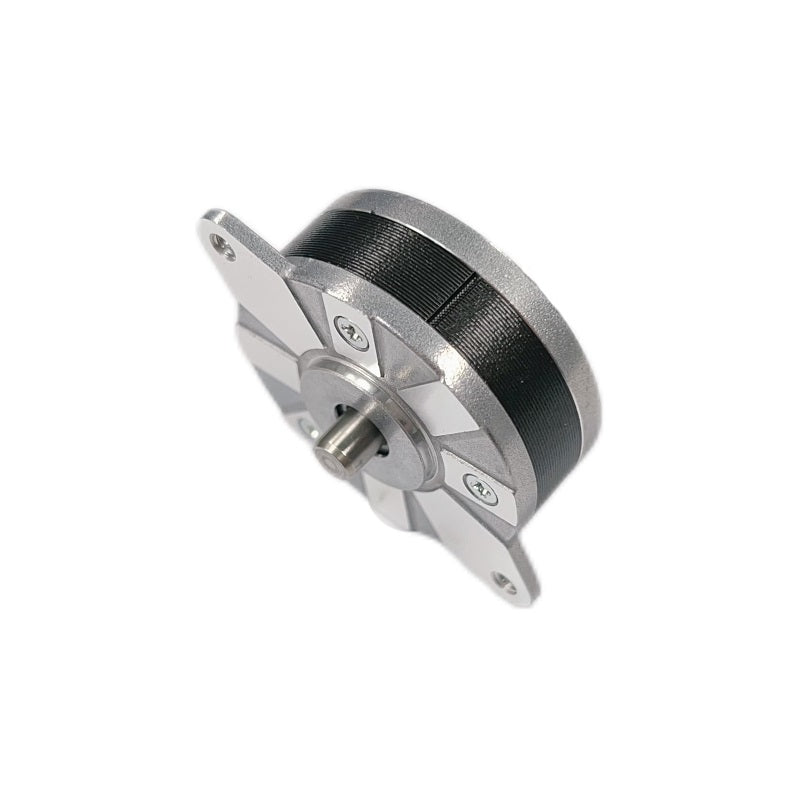

HEMM 4.8 v 13.7mm 2 Phase Micro Stepper Motor Nema 14 Ultra Thin Stepper Motor For Wholesale

HEMM NEMA 14 Ultra Thin Micro Stepper Motor – 4.8V, 0.9° Step Angle for Precision Motion Control

The HEMM NEMA 14 Micro Stepper Motor is a compact and high-performance motor designed for precision motion control in space-constrained applications. With a step angle of 0.9° and an ultra-thin design, this motor is perfect for use in robotics, automation, and other applications requiring compact yet reliable movement.

Certified for quality, it provides excellent holding torque, smooth operation, and long-lasting performance, making it ideal for use in consumer electronics, medical devices, and small-scale automation projects.

Key Features:

Compact and Precise:

• Step Angle: 0.9° ±5%, offering fine resolution and precision in every movement.
• Holding Torque: 35 mN.m (4.9 oz.in), ensuring stable holding power for lightweight applications.

Efficient Electrical Performance:

• Rated Voltage: 4.8 V, providing low power consumption for energy-efficient operation.
• Rated Current: 0.3 A, making it highly efficient for low-load tasks.
• Resistance: 16 Ω ±10% at 25°C for stable electrical performance.
• Inductance: 9.5 mH ±20% at 1kHz, 1Vrms, ensuring smooth and consistent operation.

Reliable and Safe Operation:

• Dielectric Strength: 500V A.C for 1 minute, offering protection against electrical surges.
• Insulation Resistance: ≥100 MΩ, ensuring durability and long-term performance.
• Insulation Class: Class B, providing excellent thermal protection.
• Temperature Rise: Max 80K, ensuring safe operation under normal working conditions.

Lightweight and Space-Saving Design:

• Net Weight: Approximately 60g (2.12 oz), making it an ideal choice for compact systems.
• Rotor Inertia: 4 g.cm² (0.02 oz.in²), contributing to quick response times and minimal delay.

Versatile Load Handling:

• Allowable Thrust Load: 10 N for handling axial forces with ease.
• Allowable Radial Load: 21 N at the shaft end, ensuring reliable performance under varying loads.

Wide Operating Range:

• Operating Temperature Range: -20°C to +50°C, making it suitable for a variety of environments.
• Operating Humidity: 15% to 90%, ideal for humid or variable conditions.

Long-Lasting Performance:

• Life Expectancy: 5,000 hours for dependable, long-term operation in demanding applications.

Applications:

The HEMM NEMA 14 Micro Stepper Motor is perfect for:

• Robotics: Compact and efficient motion control for robotic systems.
• Automation: Ideal for automated equipment and control systems requiring precision in tight spaces.
• Consumer Electronics: Used in small devices such as cameras, printers, and medical devices.
• Medical Devices: Reliable and efficient motion for medical instruments.

Why Choose the HEMM NEMA 14 Micro Stepper Motor?

With its ultra-thin design, low power consumption, and precise control, the HEMM NEMA 14 Micro Stepper Motor is the perfect solution for applications where space, efficiency, and performance are crucial. Whether you're developing robotics, automation systems, or other compact applications, this motor ensures reliable operation and long-lasting durability.

Optimize your motion control needs with the HEMM NEMA 14 Ultra Thin Micro Stepper Motor – a small but powerful solution for precise, space-saving motion control.
