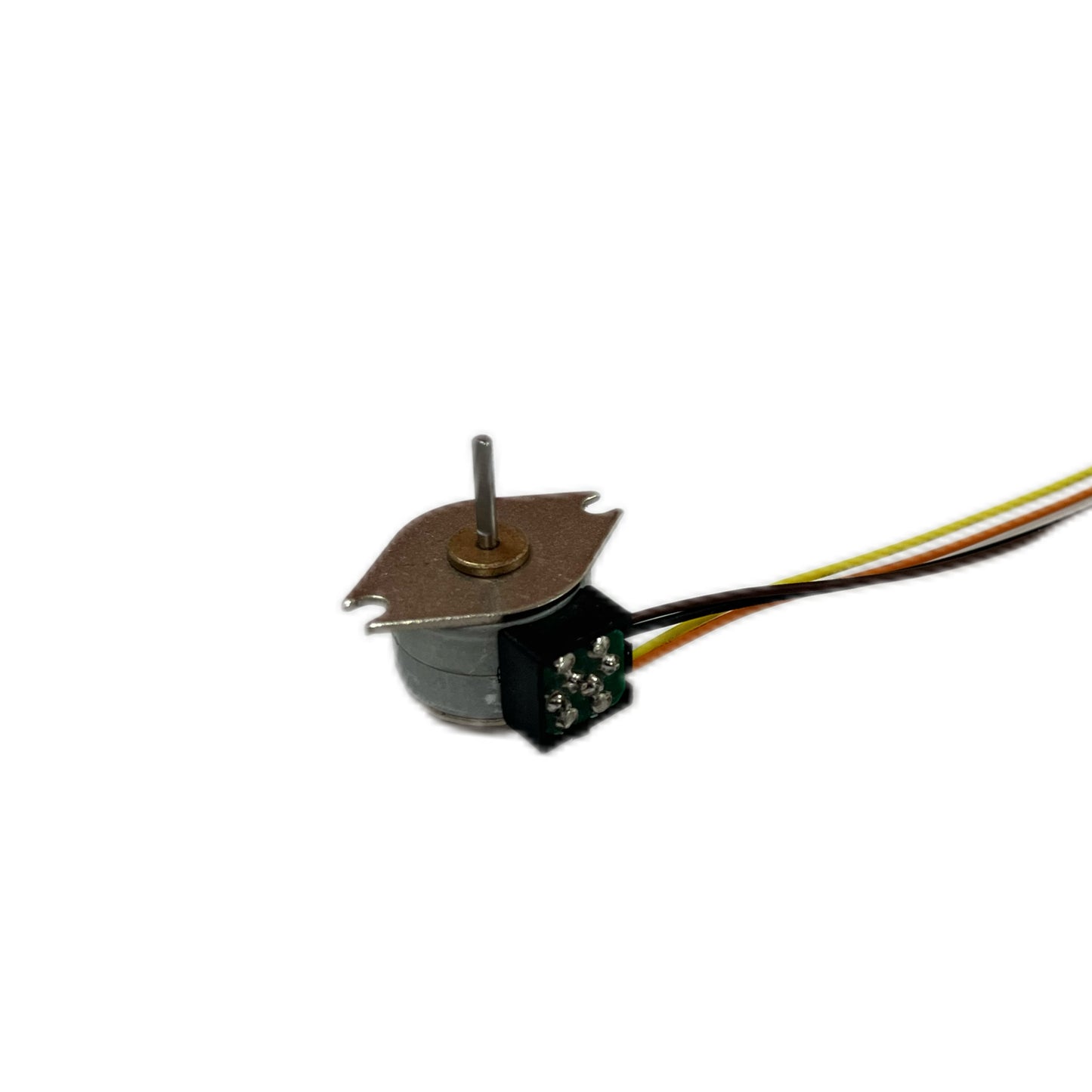

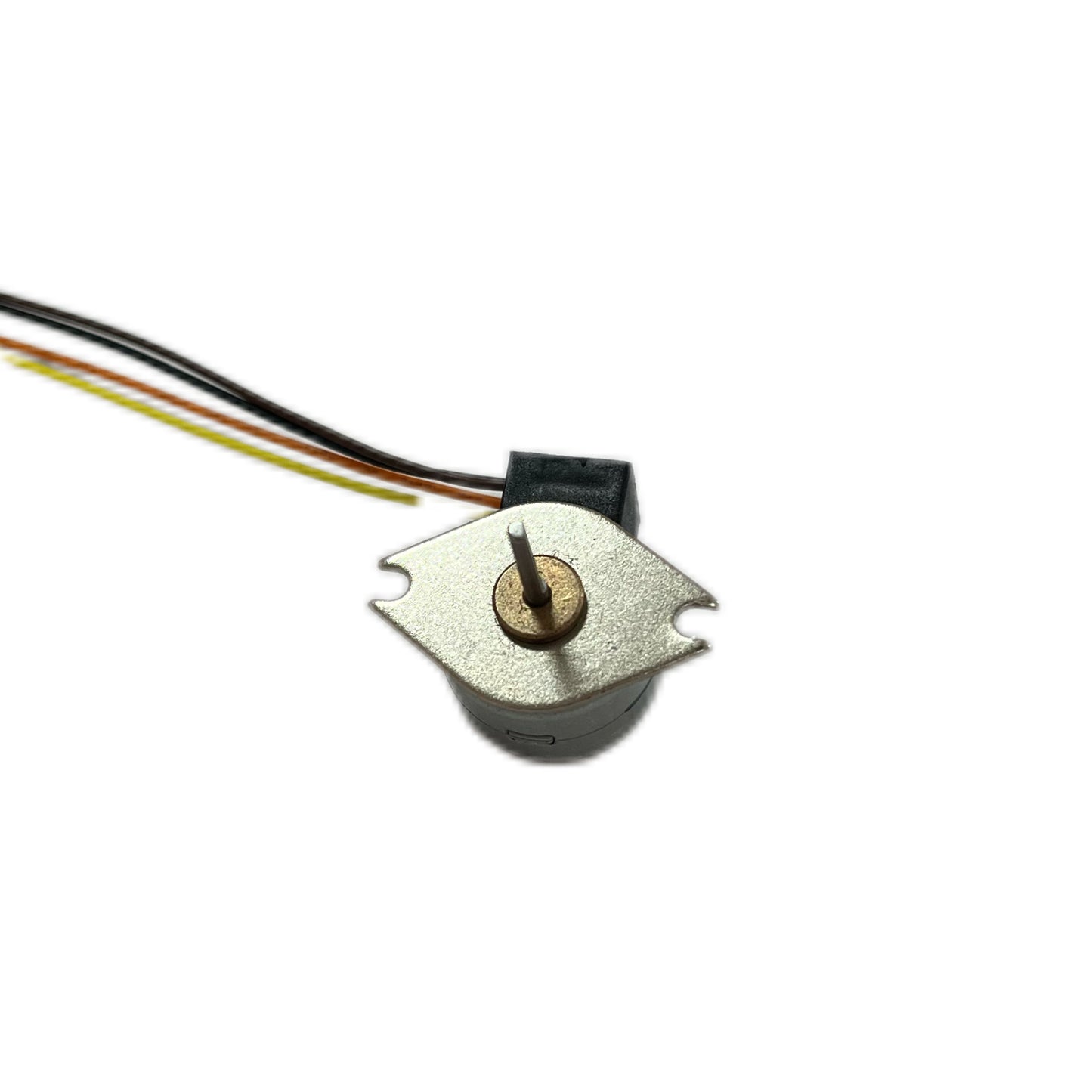

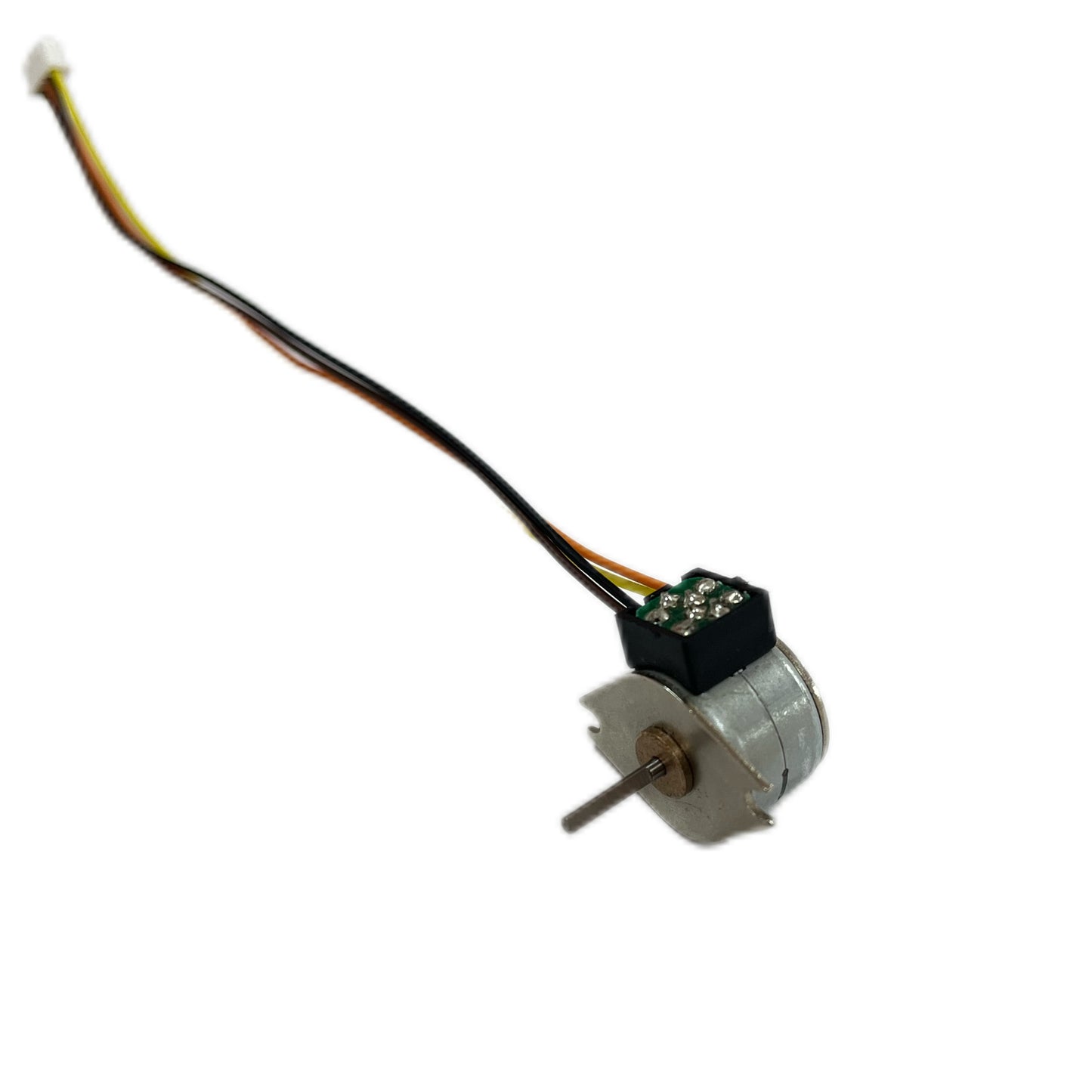

HEMM 6S1401 5V 2 Phase 18 Degree PM Stepper Motor

This stepper motor is designed for precise and efficient movement in various applications. With a rated voltage of 5V and a step angle of 18°, this 2-phase motor offers reliable performance and versatility. It features 20 steps per revolution, providing moderate precision for low to medium-speed control systems.

Key Features:

• Excitation: 2-2 phase system, ensuring smooth and reliable operation.

• Rated Voltage: 5V, optimized for typical low-voltage control applications.

• Step Angle: 18° per step, offering a balance of performance and precision.

• Number of Phases: 2, suitable for typical stepper motor driving methods.

• Steps per Revolution: 20 steps, providing decent resolution for a wide range of uses.

• Resistance per Phase: 32Ω ±7% at 20°C, offering stable current characteristics.

• Inductance per Phase: 7.0mH ±20%, ensuring efficient energy use.

• Current per Phase: 0.17A, balancing power consumption with torque output.

• Pull-in Rate: 890 PPS (minimum), supporting fast and efficient motion.

• Holding Torque: 20 g·cm, ensuring steady positioning when the motor is stationary.

• Pull-in Torque: 10 g·cm at 100 PPS, providing sufficient torque for initial movement.

• Insulation Class: Class E, ensuring reliable operation under high-temperature conditions.

• Dielectric Strength: RMS for 2 seconds at AC 650±50V, offering excellent insulation properties.

• Insulation Resistance: 100MΩ minimum at DC 500V, ensuring long-lasting performance and safety.

• Operating Temperature Range: -10°C to 50°C, allowing operation in a wide range of environmental conditions.

• Storage Temperature Range: -30°C to 80°C, suitable for various storage environments.

• Rotor Inertia: Less than 1.0 g·cm, allowing for quick response and precise control.

• Detent Torque: 10 g·cm, providing minimal resistance during idle positioning.

• Stepping Accuracy: 18° ±7%, offering consistent performance across applications.

• Weight: 11g, compact and lightweight for easy integration.

• Life Expectancy: 3000 hours minimum at 20°C and 500 PPS, ensuring long-term reliability.

This stepper motor is ideal for applications requiring moderate precision, low power consumption, and a compact size, offering a long-lasting and efficient solution for various mechanical systems.
