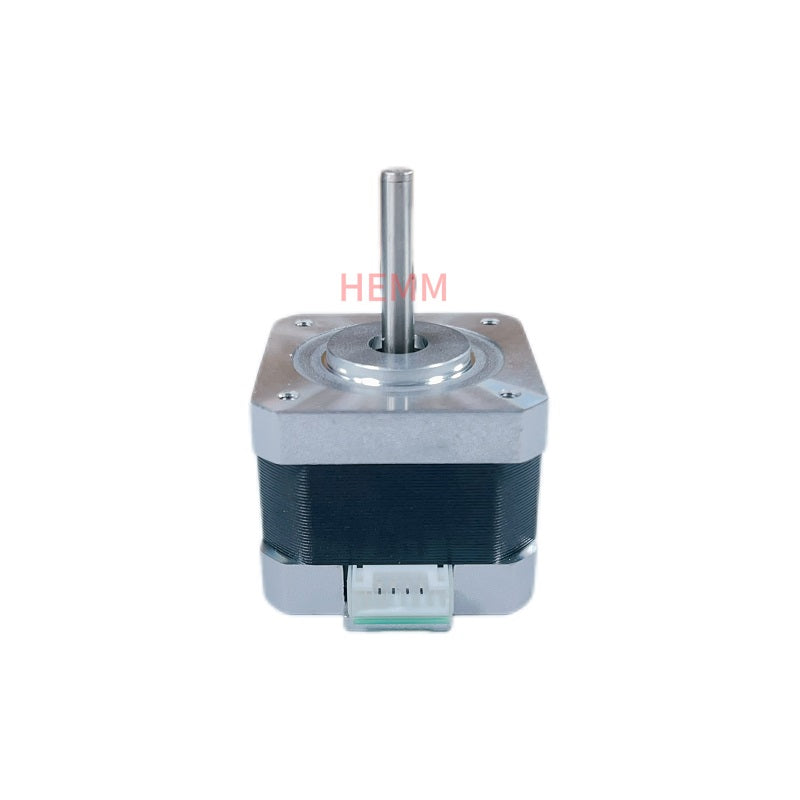

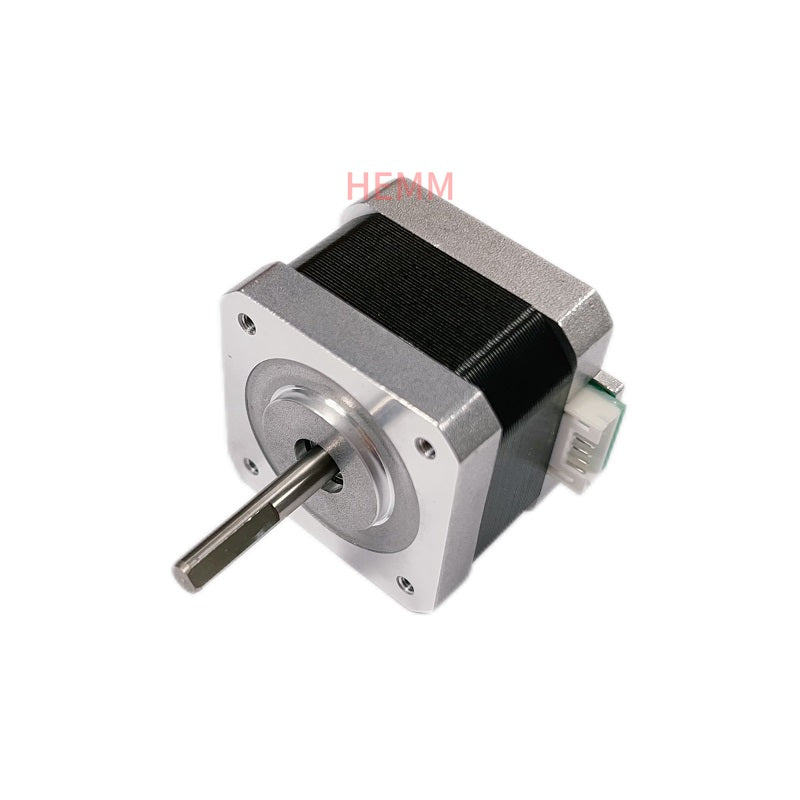

HEMM High Quality Hybrid Nema17 Stepping Motor 1.5a 2.25 V Dc 1.8 Degree 2 Phase Hybrid Stepper Motor

HEMM NEMA17 Hybrid Stepper Motor – Reliable Precision for Versatile Applications

The HEMM High-Quality NEMA17 Hybrid Stepper Motor is designed for exceptional accuracy, efficiency, and durability. With a 1.8° step angle, 2-phase operation, and a compact design, this motor is ideal for a wide range of applications, including 3D printers, robotics, and automation systems.

Key Features:

High Precision and Stability:

• Step Angle: 1.8° ±5% for smooth and accurate positioning.
• Holding Torque: 0.3 N.m (42.4 oz.in) ensures reliable performance in demanding tasks.

Efficient Electrical Performance:

• Rated Voltage: 2.25 V
• Rated Current: 1.5 A for efficient operation.
• Resistance: 2.4 Ω ±10% at 25°C
• Inductance: 3.7 mH ±20% at 1kHz, 1Vrms

Robust Construction:

• Dielectric Strength: 500V A.C for 1 minute ensures electrical safety.
• Insulation Resistance: ≥100 MΩ for enhanced reliability.
• Insulation Class: Class B for excellent thermal endurance.
• Temperature Rise: Max 80K for consistent performance under load.

Compact and Lightweight Design:

• Rotor Inertia: 40 g.cm² (0.22 oz.in²) for responsive and smooth motion.
• Net Weight: Approx. 210 g (7.41 oz), ideal for space-sensitive applications.

Durable and Versatile:

• Allowable Thrust Load: 10 N
• Allowable Radial Load: 21 N at the shaft end for long-lasting operation.
• Operating Temperature Range: -20°C to +50°C, suitable for various environments.
• Humidity Range: 15% to 90%, ensuring adaptability in different conditions.

Longevity:

• Operational Life: 5,000 hours for reliable, long-term use.

Applications:

The HEMM NEMA17 Hybrid Stepper Motor is perfect for:

• 3D printers and CNC machines
• Robotics and automation systems
• Medical and laboratory devices
• Precision positioning and motion control systems

Why Choose HEMM NEMA17 Hybrid Stepper Motor?

With its precise motion control, compact size, and robust design, the HEMM NEMA17 Hybrid Stepper Motor is an excellent choice for applications requiring accuracy, durability, and efficiency.

Empower your projects with the HEMM NEMA17 Hybrid Stepper Motor and achieve superior performance and reliability!
