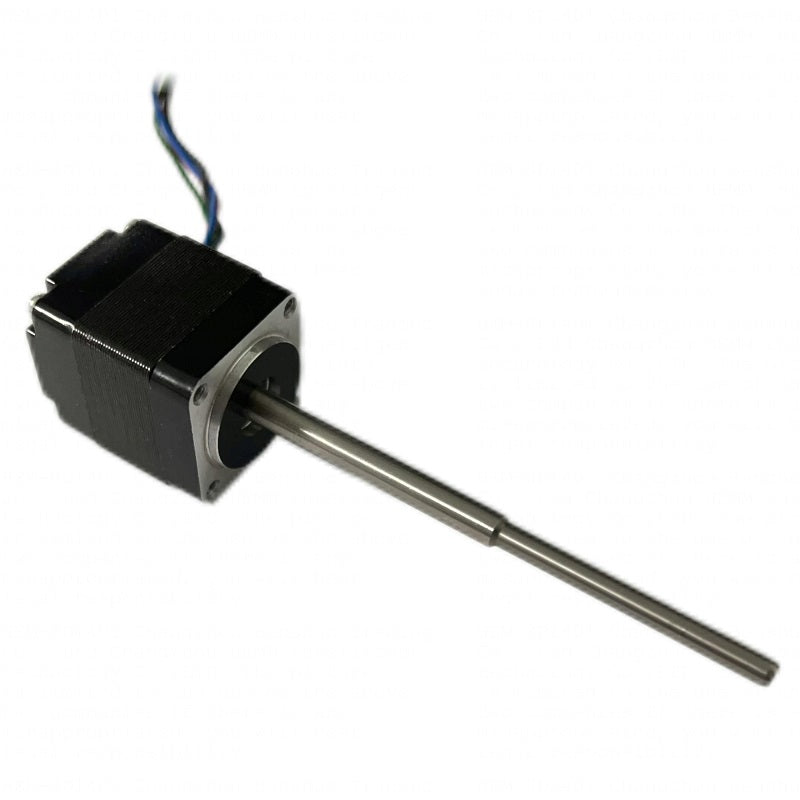

HEMM Hot sale NEMA8 20x20x24mm long shaft 3mm 4mm shaft Hybrid Stepper Motor

HEMM NEMA8 Hybrid Stepper Motor – Compact Precision with Long Shaft Design

The HEMM NEMA8 Hybrid Stepper Motor offers high accuracy and reliable performance in a compact 20x20x24mm form factor. Designed with a long shaft (3mm or 4mm options), this motor is perfect for applications requiring precise motion control in tight spaces, such as medical devices, robotics, and precision instrumentation.

Key Features:

• Precision Step Angle:
  • 1.8° ±5% for accurate and smooth motion control.
• Power and Efficiency:
  • Rated Voltage: 2.52 V
  • Rated Current: 0.45 A
  • Resistance: 5.6 Ω ±10% at 25°C
  • Inductance: 1.1 mH ±20% at 1kHz, 1Vrms
• Strong Holding Torque:
  • 8 mN.m (1.13 oz.in) ensures stable operation for demanding tasks.
• Robust Electrical Properties:
  • Dielectric Strength: 500V A.C for 1 minute.
  • Insulation Resistance: Minimum 100 MΩ for enhanced safety.
  • Insulation Class: Class B for thermal reliability.
• Compact Design with Lightweight Build:
  • Rotor Inertia: 1.5 g.cm² (0.008 oz.in²) for responsive control.
  • Net Weight: Approximately 40 g (1.4 oz), ideal for space-constrained applications.
• Durable and Reliable:
  • Temperature Rise: Max 80K for consistent performance under load.

Applications:

The HEMM NEMA8 Hybrid Stepper Motor is ideal for:

• Medical devices and laboratory automation
• Robotics and precision positioning systems
• Compact industrial equipment
• Custom small-scale machinery

With its high torque, compact size, and long shaft options, the HEMM NEMA8 Hybrid Stepper Motor is the perfect solution for precise, space-saving motion control.

Why Choose HEMM?

With excellent engineering and reliable performance, this motor ensures precision and durability in every application. Upgrade your project with the HEMM NEMA8 Hybrid Stepper Motor today!
